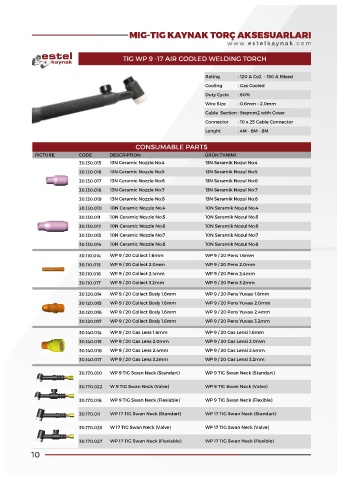

Page 10 - Estel Katalog REV - 3.cdr

MIG-TIG KAYNAK TORÇ AKSESUARLARI
w w w . e s t e l k a y n a k . c o m

TIG WP 9 -17 AIR COOLED WELDING TORCH

Rating : 120 A Co2 - 150 A Mixed
Cooling : Gas Cooled
Duty Cycle : 60%
Wire Size : 0.6mm - 2.0mm
Cable Section : 9sqmm2 with Cover
Connector : 10 x 25 Cable Connector
Lenght : 4M - 6M - 8M

CONSUMABLE PARTS
PICTURE CODE DESCRIPTION ÜRÜN TANIMI
30.130.015 13N Ceramic Nozzle No:4 13N Seramik Nozul No:4
30.130.016 13N Ceramic Nozzle No:5 13N Seramik Nozul No:5
30.130.017 13N Ceramic Nozzle No:6 13N Seramik Nozul No:6
30.130.018 13N Ceramic Nozzle No:7 13N Seramik Nozul No:7
30.130.019 13N Ceramic Nozzle No:8 13N Seramik Nozul No:8
30.130.010 10N Ceramic Nozzle No:4 10N Seramik Nozul No:4
30.130.011 10N Ceramic Nozzle No:5 10N Seramik Nozul No:5
30.130.012 10N Ceramic Nozzle No:6 10N Seramik Nozul No:6
30.130.013 10N Ceramic Nozzle No:7 10N Seramik Nozul No:7
30.130.014 10N Ceramic Nozzle No:8 10N Seramik Nozul No:8

30.110.014 WP 9 / 20 Collect 1.6mm WP 9 / 20 Pens 1.6mm
30.110.015 WP 9 / 20 Collect 2.0mm WP 9 / 20 Pens 2.0mm
30.110.016 WP 9 / 20 Collect 2.4mm WP 9 / 20 Pens 2.4mm
30.110.017 WP 9 / 20 Collect 3.2mm WP 9 / 20 Pens 3.2mm
30.120.014 WP 9 / 20 Collect Body 1.6mm WP 9 / 20 Pens Yuvası 1.6mm
30.120.015 WP 9 / 20 Collect Body 1.6mm WP 9 / 20 Pens Yuvası 2.0mm
30.120.016 WP 9 / 20 Collect Body 1.6mm WP 9 / 20 Pens Yuvası 2.4mm
30.120.017 WP 9 / 20 Collect Body 1.6mm WP 9 / 20 Pens Yuvası 3.2mm

30.140.014 WP 9 / 20 Gas Lens 1.6mm WP 9 / 20 Gas Lensi 1.6mm
30.140.015 WP 9 / 20 Gas Lens 2.0mm WP 9 / 20 Gas Lensi 2.0mm
30.140.016 WP 9 / 20 Gas Lens 2.4mm WP 9 / 20 Gas Lensi 2.4mm
30.140.017 WP 9 / 20 Gas Lens 3.2mm WP 9 / 20 Gas Lensi 3.2mm

30.170.010 WP 9 TIG Swan Neck (Standart) WP 9 TIG Swan Neck (Standart)

30.170.022 W 9 TIG Swan Neck (Valve) WP 9 TIG Swan Neck (Valve)

30.170.016 WP 9 TIG Swan Neck (Flexiable) WP 9 TIG Swan Neck (Flexible)

30.170.011 WP 17 TIG Swan Neck (Standart) WP 17 TIG Swan Neck (Standart)

30.170.023 W 17 TIG Swan Neck (Valve) WP 17 TIG Swan Neck (Valve)

30.170.027 WP 17 TIG Swan Neck (Flexiable) WP 17 TIG Swan Neck (Flexible)
